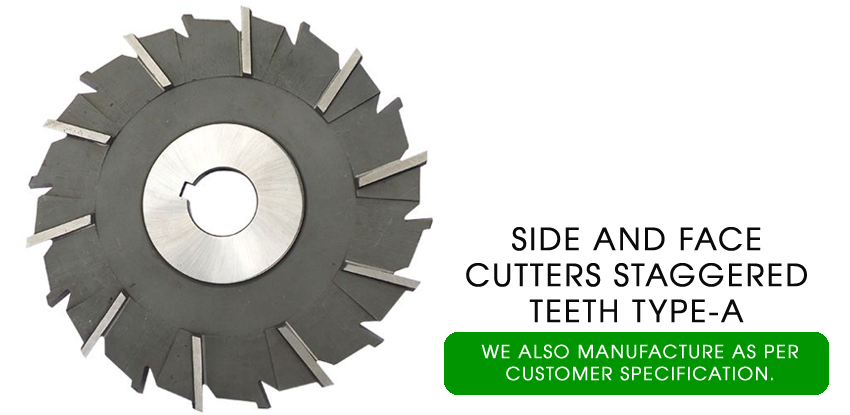

Side and Face milling cutters are profile sharpened cutters, having a teeth on periphery and on both sides. Used on horizontal milling Machine to mill slots, shoulders, small width surface etc.
Product Specification
Diameter in mm
Specification conform to is: 6308-1982/ ISO 2587-1972
Normally Type A Tools are Supplied.
As per DIN 885 (Part -1) : 1981
| Diameter | Width |
| 50 | 5, 6,8,10 |
| 63 | 5,6,8,10,12,14,16 |
| 80 | 5,6,8,10,12,14,16,18,20 |
| 100 | 6,8,10,12,14,15,18,20,22,25 |
| 125 | 8,10,12,14,16,18,20,22,25,28 |
| 160 | 10,12,14,16,18 |
| 160 | 20,22,25,28,32 |
| 200 | 12,14,16,1820,22,25,28,32,36,40 |
