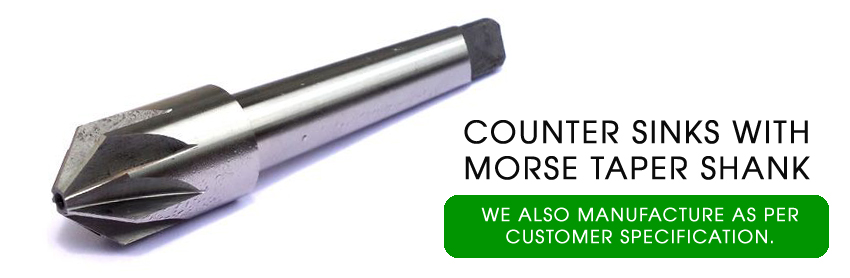

A cutter with teeth on the conical cutting faces, integral with a Morse Taper Shank designed to produce a conical seating to accommodate the conical head of a component such as screw or rivet. R.H Cutting with straight teeth shall be supplied unless otherwise specified.
Specifications Confirm to IS 13303 - 1992 ISO 3293 - 1975
Product Specification
| Nominal Size | Small Dia. | Overall Length | Body Length | Morse Taper No. | ||
| 60 Deg. | 90 & 120 Deg. | 60 Deg. | 90 & 120 Deg. | |||
| 16.0 | 3.2 | 97 | 93 | 24 | 20 | 1 |
| 20.0 | 4.0 | 120 | 116 | 28 | 24 | 2 |
| 25.0 | 7.0 | 125 | 121 | 33 | 29 | 2 |
| 31.5 | 9.0 | 132 | 124 | 40 | 32 | 2 |
| 40.0 | 12.5 | 160 | 150 | 45 | 35 | 3 |
| 50.0 | 16.0 | 165 | 153 | 50 | 38 | 3 |
| 63.0 | 20.0 | 200 | 185 | 58 | 43 | 4 |
| 80.0 | 25.0 | 215 | 196 | 73 | 54 | 4 |
