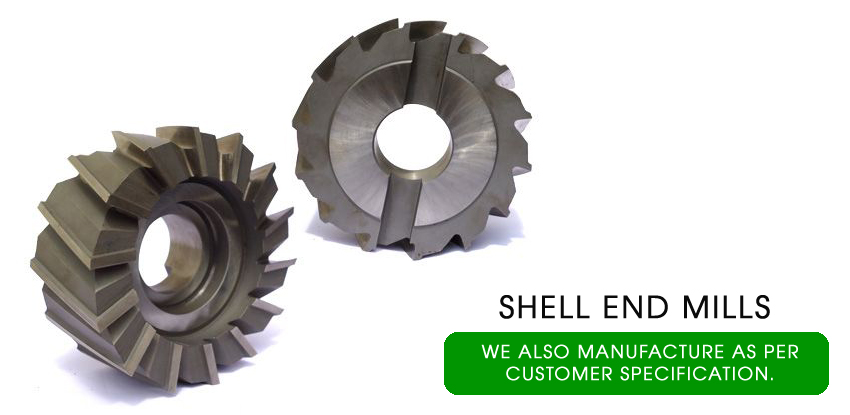

A Cutter with teeth on Periphery and one end provided with a back face key slot drive for use on an arbor. These are used for end and face milling operation either in horizontal or in vertical milling machine.
Specifications Confirm to : IS 6257-1982
Product Specification
Diameter |
Shell End Mill Bore | Length |
40 | 16 | 32 |
50 | 22 | 36 |
63 | 27 | 40 |
80 | 27 | 45 |
100 | 32 | 50 |
125 | 40 | 56 |
160 | 50 | 63 |
