HSS Cutting Tools Products

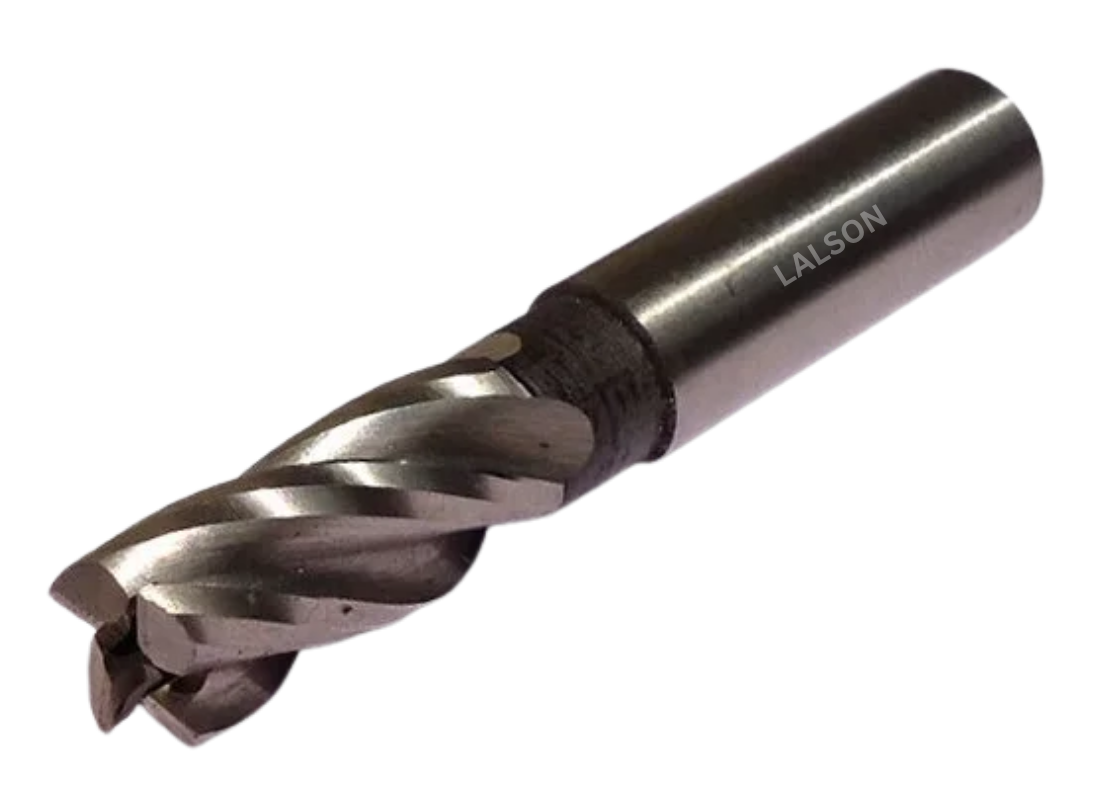

Parallel Shank End Mills (Long Series) – Lalson Cutting Tools
Our Parallel Shank End Mills are available in a range of standard and non-standard sizes, and can be customized based on customer-specific drawings and requirements. Manufactured using premium-grade raw materials under expert supervision, these tools deliver superior performance, durability, and accuracy.
The range is offered in HSS and HSS-Co variants, suitable for various materials and cutting conditions. Lalson’s end mills are globally recognized and exported to numerous countries, meeting the highest standards in machining excellence.
Specifications confirm to : IS 6353-1991 ISO 1641: Part 1:1978.
Product Details
Applications
LALSON Parallel Shank End Mills (Long Series) are widely used in:
- Deep slot milling operations
- Profile and contour milling
- Extended reach machining applications
- Die and mold manufacturing
- Tool room and precision engineering work
- CNC machining centers
- Automotive and aerospace industries
- General engineering and fabrication industries
Built for Professional Performance
The optimized flute geometry and long series design minimize vibration and improve machining stability, resulting in enhanced surface finish and increased productivity even in deep milling applications. Whether used in precision tool rooms or high-production CNC machining operations, Lalson End Mills are trusted for their professional-grade quality, reliability, and performance.
Product Specification
| Diameter (in mm) | Cutting Edge Length | Overall Length | Shank Dia. |
|---|---|---|---|
| 6 | 24 | 68 | 6 |
| 7 | 30 | 74 | 8 |
| 8 | 38 | 82 | 8 |
| 9 | 38 | 88 | 10 |
| 10 | 45 | 95 | 10 |
| 11 | 45 | 102 | 12 |
| 12 | 53 | 110 | 12 |
| 13,14 | 53 | 110 | 12 |
| 15,16 | 63 | 123 | 16 |
| 17,18 | 63 | 123 | 16 |
| 19 | 75 | 141 | 20 |
| 20 | 75 | 141 | 20 |
| 21 | 75 | 141 | 20 |
| 22 | 75 | 141 | 20 |
| 23,24 | 90 | 166 | 20 |
| 25 | 90 | 166 | 25 |
| 26,27 | 90 | 166 | 25 |
| 28 | 90 | 166 | 25 |
| 29,30 | 106 | 186 | 25 |
| 31 | 106 | 186 | 25 |
| 32 | 106 | 186 | 32 |
| 33,34 | 106 | 186 | 32 |
| 35 | 106 | 186 | 32 |
| 36 | 106 | 186 | 32 |
| 37,38,39 | 125 | 217 | 32 |
| 40 | 125 | 217 | 40 |
| 42 | 125 | 217 | 40 |
| 43,44 | 125 | 217 | 40 |
| 45 | 125 | 217 | 40 |
| 46 | 150 | 252 | 40 |
| 48,49 | 150 | 252 | 40 |
| 50 | 150 | 252 | 50 |
| 52 | 150 | 252 | 50 |
| 54 | 150 | 252 | 50 |
| 55 | 150 | 252 | 50 |
| 56 | 150 | 252 | 50 |
| 58 | 180 | 282 | 50 |
| 59,60 | 180 | 282 | 50 |
| 62 | 180 | 282 | 50 |
| 63 | 180 | 282 | 50 |
| 65 | 180 | 292 | 50 |
| 66 | 180 | 292 | 50 |
| 68 | 180 | 292 | 50 |
| 69,70 | 180 | 292 | 50 |
| 71 | 180 | 292 | 63 |
Why Choose LALSON Parallel Shank End Mills (Long Series)?
Manufactured from premium-grade High Speed Steel (HSS)
Long series design ideal for deep and extended reach machining
Precision-ground cutting edges for accurate milling performance
Excellent wear resistance for longer tool life
Smooth chip evacuation for efficient machining operations
Reduced vibration for improved surface finish and stability
Suitable for CNC and conventional milling machines
Ideal for slotting, profiling, contouring, and deep milling applications
