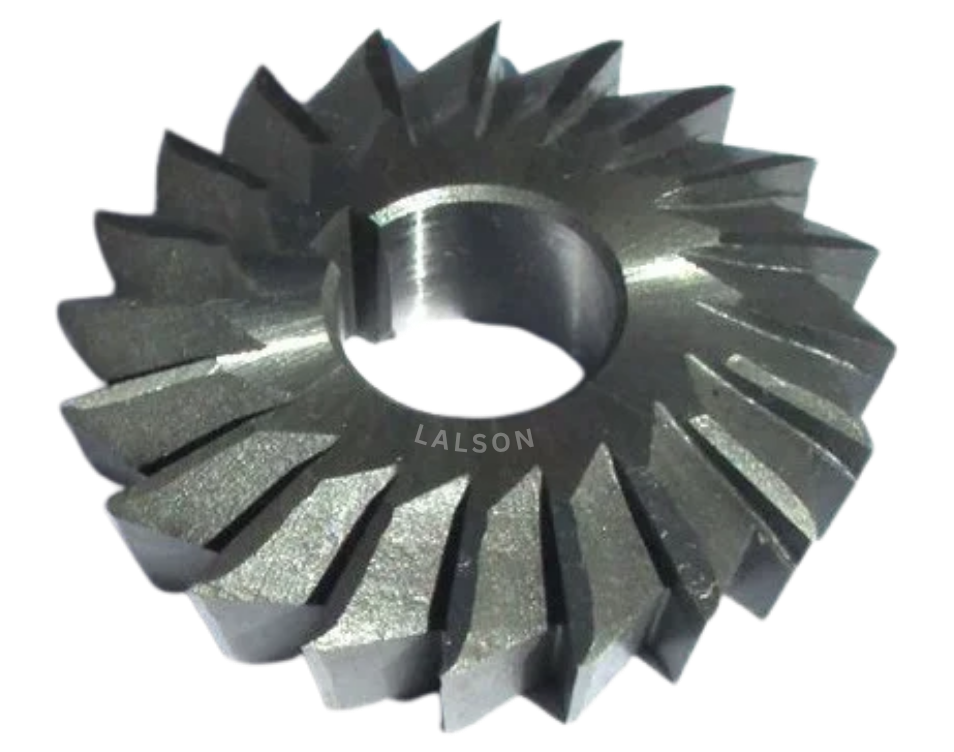

Unequal Angle Cutter – Lalson Cutting Tools
Precision Cutting Solutions by LALSON
Lalson is a leading exporter of Unequal Angle Cutters, precisely engineered with teeth on a conical surface and featuring unequal angles between the intersecting conical sides. These cutters are designed for applications that require accurate angular profiling and precision machining.
Unequal Angle Cutters by Lalson ensure excellent straightness, high positional accuracy, and superior surface finish in processed components. The nominal angles are defined as the angles between the two conical surfaces, measured in a radial plane.
We manufacture these cutters to meet a wide range of international standards, including AISI, IS, JIS, DIN, ISO, and BS, and can customize them based on specific application needs.
The Cutter with teeth on the conical surface and with unequal angles between the conical sides and the plane of intersection of the two cones. The nominal angles of the cutter are the angles between the two conical sides, measured in a radial plane. As per I.S. 6324 – 1971
Product Details
Applications
LALSON Unequal Angle Cutters are widely used in:
- Angular groove machining
- Bevel and chamfer cutting operations
- Specialized angular profile milling
- Tool and gear manufacturing
- Jig and fixture machining
- Tool room and precision engineering work
- CNC machining operations
- General engineering and fabrication industries
Built for Professional Performance
At LALSON, our Unequal Angle Cutters are engineered to deliver superior precision, smooth cutting performance, and reliable durability in demanding industrial environments. Manufactured using premium raw materials and advanced grinding technology, these cutters ensure accurate angular profiles, efficient chip removal, and consistent machining performance.
The optimized cutter geometry minimizes vibration and cutting pressure while improving machining stability and surface finish. Whether used in precision tool rooms or high-production CNC machining operations, LALSON Unequal Angle Cutters are trusted for their professional-grade quality, reliability, and machining excellence.
Product Specification
| Diameter | Width | Bore | Small Angle in Degrees x Included Angle in Degrees |
|---|---|---|---|
| 50 | 12 | 16 | 12x55, 15x60, 16x65, 15x70, 15x75, 15x80 |
| 50 | 14 | 16 | 20x90 |
| 50 | 16 | 16 | 25x100 |
| 63 | 18 | 22 | 12x55, 15x60, 15x65, 15x70, 15x75, 15x80 |
| 63 | 20 | 22 | 20x90 |
| 63 | 22 | 22 | 25x100 |
| 80 | 32 | 22 | 15x65, 15x70, 15x75 |
| 100 | 36 | 27 | 15x70, 15x75, 15x80 |
Why Choose LALSON Unequal Angle Cutter?
Manufactured from premium-grade High Speed Steel (HSS)
Precision-engineered for specialized angular milling applications
Unequal angle design ensures accurate complex profile machining
Excellent wear resistance for extended tool life
Smooth cutting performance with reduced vibration
High dimensional accuracy and superior surface finish
Efficient chip evacuation for stable machining operations
Suitable for CNC and conventional milling machines
