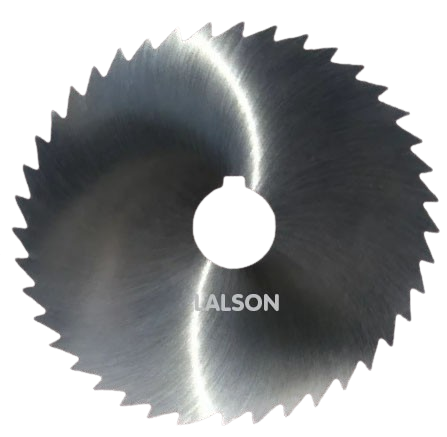

Slitting Saw DIN 1837 A

Materials: Steel, cast iron, non-ferrous metals, and plastic

Application: Recommended for slotting and cutting fragile or hard materials that produce short chips. Particularly suitable for cutting thin-walled profiles and delicate components.

Machine: Metalworking and metal processing machines

Characteristics:

• HSS circular slitting saw blades with fine teeth
• Hollow-ground design with a flange for precise cutting performance
• Standard version supplied without driving pin holes or keyway; these can be provided on request
• Tooth form A; AW tooth form available on request
• Very sharp cutting edge for clean and accurate cuts
• Reduced chip clearance, making the blade especially suitable for short-chip materials
• Tolerances and hollow grinding according to DIN 1840

Lalson Tools Corporation – DIN 1837 A Slitting Saws

Lalson Tools Corporation offers high-quality DIN 1837 A slitting saws engineered for precision slotting and cutting applications. These fine-tooth HSS circular saw blades are particularly suitable for fragile and hard materials, including steel, cast iron, non-ferrous metals, and plastics.

The A tooth form is especially suitable for thin slitting saw blades with tooth pitches ranging from 0.8 mm to 3.0 mm. Its very sharp cutting edge enables clean, precise cuts, making it an excellent choice for thin-walled profiles and applications where accuracy is essential.

The reduced chip clearance is designed for materials that generate short chips. Since the tooth geometry is optimised for short-chip materials, it is not intended for efficiently removing long chips from the cutting area.

The standard design features hollow grinding and a flange for smooth and accurate cutting. Depending on application requirements, the blades can also be supplied with driving pin holes, a keyway, or the AW tooth form, which incorporates alternate chamfering.

Manufactured with precision to meet DIN 1837 and DIN 1840 requirements, Lalson Tools Corporation’s DIN 1837 A slitting saws provide reliable performance, sharp cutting action, and consistent results in demanding metalworking applications.

Slitting Saw DIN 1838 B

Materials: Steel, cast iron, and non-ferrous metals

Application: Ideal for slotting and cutting applications involving materials that produce long chips. Particularly suitable for cutting thick-walled profiles with wall thicknesses above 2 mm.

Machine: Metalworking and metal processing machines

Characteristics:

• HSS circular slitting saw blades with coarse teeth
• Hollow-ground design with a flange for smooth cutting performance
• Standard version supplied without driving pin holes or keyway
• Tooth form B; BW tooth form available on request
• Larger chip clearance compared with tooth form A for efficient chip removal
• Manufactured with tolerances and hollow grinding according to DIN 1840

Lalson Tools Corporation – DIN 1838 B Slitting Saws

Lalson Tools Corporation offers high-quality DIN 1838 B slitting saws designed for reliable performance in demanding metalworking applications. Manufactured to precise European standards, these HSS circular saw blades are especially suitable for slotting, deep cutting, and cutting-off operations in steel and other metals.

The DIN 1838 B tooth form provides increased chip clearance, allowing efficient chip evacuation and enabling deeper cuts compared with type A tooth geometry. The standard design features hollow grinding and a flange, helping to reduce friction and provide smooth, accurate cutting.

For specialised applications, BW tooth form blades are also available. The BW version incorporates alternate chamfering for improved cutting performance and versatility.

Lalson Tools Corporation’s DIN 1838 B slitting saws are manufactured with precision and durability in mind, making them a dependable choice for professional metalworking and industrial cutting applications.

Slitting Saw DIN 1838 C

Materials: Steel, cast iron, and non-ferrous metals

Application: Recommended for slotting and cutting materials that produce long chips. Particularly suitable for cutting thick-walled profiles with wall thicknesses above 2 mm and solid materials.

Machine: Metalworking and metal processing machines

Characteristics:

• HSS circular slitting saw blades with coarse teeth
• Hollow-ground design with a flange for smooth and precise cutting
• Standardly supplied without driving pin holes or keyway
• C tooth form consists of alternating roughing and finishing teeth
• Roughing teeth are chamfered on both sides and are 0.15–0.30 mm wider than the finishing teeth at the cutting edge
• The special tooth geometry divides chips into three parts, providing highly efficient chip removal
• Hollow-ground according to DIN 1840

Lalson Tools Corporation – DIN 1838 C Slitting Saws

Lalson Tools Corporation manufactures high-quality DIN 1838 C slitting saws designed for demanding industrial cutting and slotting applications. These HSS circular saw blades are engineered to deliver efficient chip removal, reliable cutting performance, and extended tool life.

The C tooth form combines roughing and finishing teeth to improve cutting efficiency. The roughing tooth is chamfered on both sides and is 0.15–0.30 mm wider than the finishing tooth at the cutting edge. This geometry divides the chips into three smaller sections, allowing them to evacuate more efficiently from the cutting area.

Improved chip breaking helps prevent chip accumulation and clogging, reducing the risk of poor tool life, cutting-area blockage, and tooth breakage. These slitting saws are particularly recommended for cutting solid materials and thick-walled profiles where efficient chip evacuation is essential.

Manufactured to precise standards, Lalson Tools Corporation’s DIN 1838 C slitting saws provide a dependable solution for professional metalworking applications requiring high performance and consistent cutting results.

HSS Screw Slotting Saws

Lalson Tools Corporation offers high-quality HSS Screw Slotting Saws designed for precise and efficient slotting of screw heads and screw knobs. Manufactured from premium HSS / DMo5 high-speed steel, these circular saw blades provide excellent cutting performance, durability, and dimensional accuracy.

Key Features

• Manufactured from HSS / DMo5 high-speed steel
• Designed specifically for making slots in screw heads and screw knobs
• Taper-ground construction without undercut for accurate slotting
• Tooth form A for clean and precise cutting
• Standard version supplied without surface coating
• VAPO and other PVD coatings available on request
• Suitable for precision screw-slotting applications in industrial manufacturing

The combination of high-speed steel construction, precise taper grinding, and sharp tooth geometry makes these screw slotting saws a reliable solution for producing accurate slots with consistent cutting performance.

Custom coating options, including VAPO and other PVD coatings, can be supplied according to specific application and performance requirements.

Piston Ring Cutting Blades

Lalson Tools Corporation offers high-performance HSS circular saw blades for cutting piston rings, manufactured to meet the demanding requirements of precision automotive and engine component manufacturing.

The blades are produced from premium HSS steel grades M35 and M42, providing excellent hardness, wear resistance, and cutting performance. PVD coating options are also available on request to further enhance tool life and performance in demanding applications.

Key Features

• HSS circular saw blades specifically designed for piston ring cutting
• Available in M35 and M42 HSS steel grades
• Excellent wear resistance and cutting stability
• Designed for precise and consistent cutting
• PVD coating available for extended tool life and improved performance
• Suitable for professional and industrial engine component manufacturing

Piston Ring Application

A piston ring is an expandable, split metal ring fitted into a groove around the outer diameter of a piston. It creates a spring-loaded seal between the piston and cylinder wall, helping maintain the required compression and controlling the movement of oil within the engine.

Piston rings play an important role in engine performance. Their primary functions include sealing the combustion chamber, transferring heat from the piston to the cylinder wall, and controlling cylinder-wall lubrication by regulating oil movement back toward the crankcase.

Piston rings are commonly manufactured from cast iron, which offers good strength and dimensional stability under the heat, pressure, and dynamic forces encountered during engine operation. Ring configuration and dimensions vary according to the cylinder material, piston design, and engine application.

Reliable Cutting Performance

Lalson Tools Corporation’s piston ring cutting blades are engineered for accurate and efficient cutting of piston rings, helping manufacturers achieve consistent results and dependable tool performance in precision production environments.

Built for Professional Performance

Manufactured using premium-grade High Speed Steel (HSS), Lalson Slitting Saws provide excellent wear resistance, sharp cutting edges, and long service life even under demanding working conditions. The precision-ground tooth geometry ensures smooth cutting action, reduced vibration, and superior surface finish.
